SR4P2A1B24C
Usedformonitoringsafetylightcurtains(NPN,PNPoutput)andphotoelectrictwohandedbuttonscharacteristic：1、Detectableshortcircuitfaultsininputcontacts；2、Circuitwithselfmonitoring；3、Realtimemonitoringofworkin...
Used for monitoring safety light curtains (NPN, PNP output) and photoelectric two handed buttons
characteristic：
1、Detectable short circuit faults in input contacts；
2、Circuit with self monitoring；
3、Real time monitoring of working status.
Ple;Security category：Cat.4; SIL3
Parameters:：
?
|
RESET MODE |
Manual or automatic |
| Output contact | 2N/O,1N/C |
| Working power supply | DC24V |
| consumption | 3W |
| Mean time between dangerous failures | 94a |
| switching capacity | AC-15,5A/250V; DC-13,6A/24V |
| Release buffer time | <15ms |
| Diagnostic Coverage/DC | >99% |
| protection grade | IP50 |
| operation temperature | ? -10 ~＋55℃ |
| storage temperature | ?-40 ~＋85℃ |
| Wire cross-sectional area | Maximum 2.5mm2 |
| Length | Up to 100m |
| size | 96(L)×22.5(W)×116(H)mm |
| Compliant with standards | EN 60947-5-1, EN 61000-6-2, EN 61000-6-3,? IEC/EN 60204-1, EN ISO 13849-1,? |
Wiring diagram：
?
?

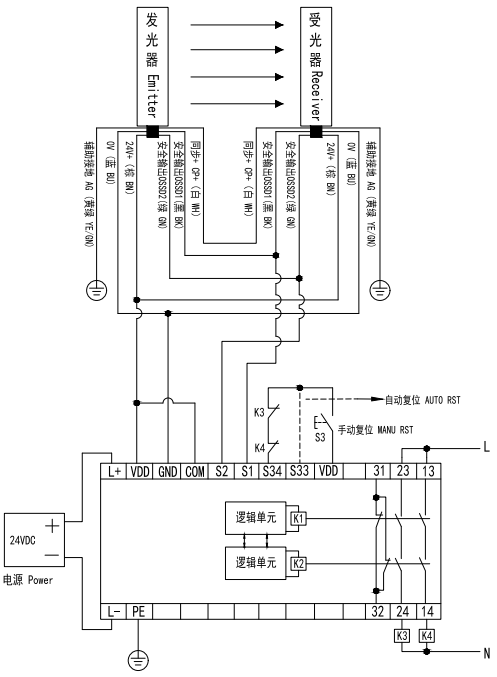

Safety light curtain NPN output：
Safety light curtain PNP output：
?
?
