SR4P2A1B24N/P-M
ProductFeatures：1、Relayoutput:2normallyopencontacts,1normallyclosedauxiliarycontact；2、Equippedwithautomaticandmonitorablemanualresetfunction；3、Withmonitorablesuppressionfunction(dualchanneleffective)；...
Product Features：
1、Relay output: 2 normally open contacts, 1 normally closed auxiliary contact；
2、Equipped with automatic and monitorable manual reset function；
3、With monitorable suppression function (dual channel effective)；
4、Provide feedback control loop for monitoring external contactors/relays。
This relay meets the following safety requirements：
1、Redundant circuits with self monitoring in the circuit；
2、Even if one component is damaged, the safety function remains effective;
3、The safety function of the relay can be automatically detected by correctly opening and closing during each switching cycle.
Technical parameters:
?
|
reset |
Manual, automatic |
|
power supply |
24VDC |
|
consumption |
3W |
|
Output contact |
2N/O，1N/C |
|
switching capacity |
AC-15，5A/250V; DC-13，6A/24V |
|
Release buffer time |
<15ms |
|
Diagnostic Coverage |
>99% |
|
Mean time between dangerous failures |
374a |
|
Average hourly hazardous failure rate |
2.0mm×10-8 |
|
protection grade |
IP50 |
|
operation temperature |
-10-＋55℃ |
|
storage temperature |
-40-＋85℃ |
|
Maximum wire cross-sectional area |
2.5mm2 |
|
Maximum cable length |
100m |
|
size |
96(L)×22.5(W)×116(H)mm |
|
Compliant with standards |
EN 60947-5-1， EN 61000-6-2， EN 61000-6-3， |
|
IEC/EN 60204-1， EN ISO 13849-1 |
?

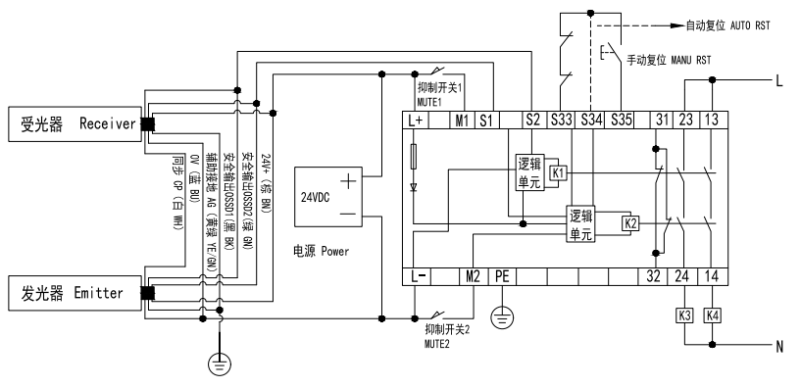

Wiring diagram：
